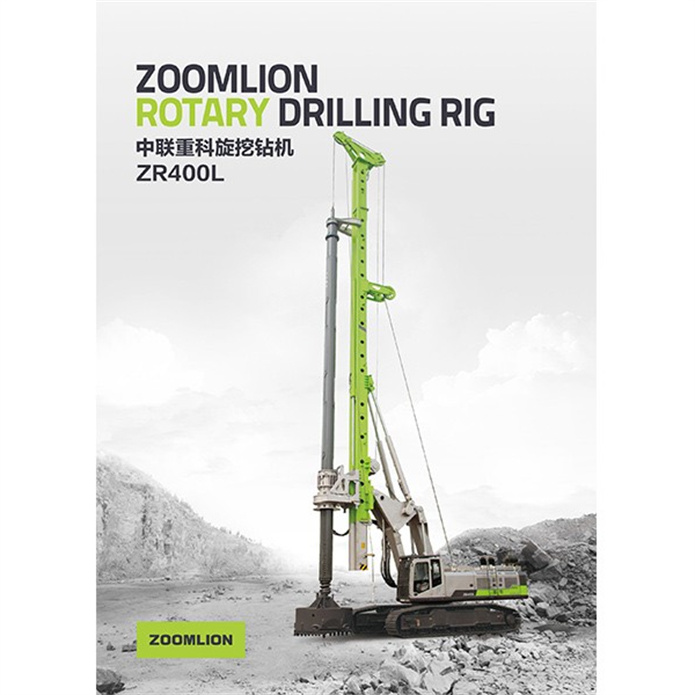

Zoomlian Heavy Industry Rotary Drilling Rig

ZR400L

ZOOPLAN ZR400L Rotary Drilling Rig Product Performance Characteristics 1. Strong rock entering ability: 580 drill pipe is standard, the maximum torque is up to 430kNm, the maximum drilling diameter is 3000mm, and the hard rock depth of 5-section machine lock rod can reach 91m. 2. High stability: adopting eccentric rotary reducer and advanced positioning and assembly technology, the rotary clearance is reduced by 70%; The chassis manufacturing process is upgraded to reduce the expansion clearance by 60%, effectively improving the stability at work; 3. Easy to use: parallelogram structure is adopted, and the transportation height without dismantling the crawler is 3715mm, which is convenient for transportation. 4. Comfortable operation: 12.3-inch capacitive touch screen is configured to realize three-dimensional dynamic display of the whole machine, with high brightness and no visual delay. With the compact control panel, the operation steps are reduced by 30%. 5. Intelligent control: The bottom protection function is upgraded, and the speed is automatically reduced when approaching the bottom of the hole, reducing the impact of the whole machine and the hoisting system, and effectively protecting the wire rope. regular parameters Equipment Model ZR400L Model abbreviation 400 Engine Model Cummins QSX15 Rated power (kW) 398 Displacement (L) 15 Whole machine parameters Total mass of equipment (kg) 130000 Overall dimension (working state)(mm) 10125 × 5000 × 27430 Overall dimension (transportation state)(mm) 19886 × 5000 × 3715 Output torque of power head (kN · m) 430 Power head speed (r/min) 4 to 24 Maximum drilling depth (mm) 110000/91000 Drilling diameter (without casing)(mm) 3000 Traction force (kN) 600 Distance from swing center to tail of main engine (mm) 4845 Mast height (m) 27.4 Chassis parameters Maximum travel speed (km/h) 1.8 Track width (mm) 900 Pressurizing cylinder Maximum pull-out force (kN) 400/400 Maximum pressure (kN) 340/360 Pressurizing cylinder stroke (mm) 6000/16000 Master Wink Main winch Single-layer one-tube double machine Maximum lifting force (kN) 415 Max. hoisting speed (m/min) 75 Diameter of wire rope (mm) 40 Vice winch Maximum lifting force (kN) 90 Max. hoisting speed (m/min) 70 Diameter of wire rope (mm) 22 Mast inclination Sideways (°) 3.5 Forward (°) 4 Tilt backward (°) 90

Zoomlian Heavy Industry Rotary Drilling Rig

ZR280C

ZR280C is a Zhonglian 280KN rotary drilling rig. It can be equipped with power head casing driver and pipe rubbing machine, which is especially suitable for construction conditions such as sandy pebble layer, backfill soil, karst geology and rich groundwater formation.

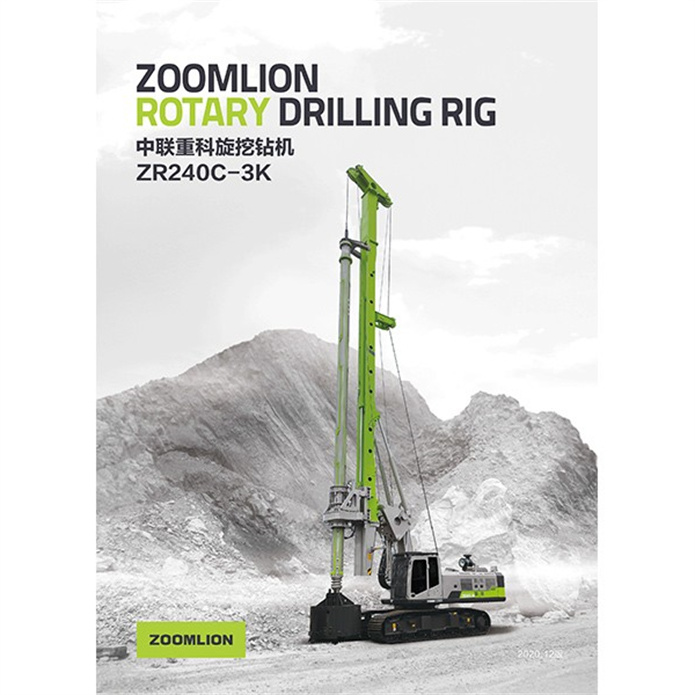

Zoomlian Heavy Industry Rotary Drilling Rig

ZR240C

Zoomlion ZR240C-3K Rotary Drilling Rig Product Introduction 1. One-key folding of the hanging anchor frame, no removal of mast support, convenient and quick transition. 2.2.0 version of power matching and limit load control technology, work efficiency increased by 10%. 3. The use of large-flow main pump, multi-gear power head, two-speed pressurized oil cylinder, the construction efficiency is higher. 4. The central single-row main winches and one-tube double machines have stronger lifting capacity; single-layer wire rope, **to maximize the service life of the wire rope. 5. Double rotary speed reducer, increase the parking torque, rock drilling operation rotary lock does not shake. 6.**V generation power head, large angle eave rod cylinder support, low center of gravity, reinforced chassis, make the machine structure more stable, stronger bearing. 7. Adopt a new generation of cab, full man-machine interface, good sight, more comfortable operation. 8. A new generation of electronic control platform, 360-degree full-view monitoring, mobile phone APP push device information, safe and convenient. Main parameters Unit Numerical Remarks Borehole parameters Max. large drilling diameter mm 2000 Maximum drilling depth m 70/56 Friction rod/engine lock rod 60/48 Optional Power head Maximum output torque kN.m 260 Speed range rpm 6-26 Pressurized system Pressurization mode Pressurizing cylinder/(winched and pressurized) Add pressure kN 220/(255) Pulling force kN 230(255) Maximum Pressurization Stroke mm 5300/(15000) Master Wink Structure type of drum Single layer, one barrel double machine Maximum single rope pull kN 240 Maximum speed m/min 70 Wire rope diameter mm 32 Vice winch Maximum single rope pull kN 90 Maximum speed m/min 80 Wire rope diameter mm 22 Mast Inclination Front/Rear ° 5/90 Left/Right ° ± 4.5 Engine Engine Model Cummins QSL9 Engine rated power kW 242 Engine emission standards Country III Engine Displacement L 8.9 Chassis Track outer width (min ~ max) mm 3260-4400 Telescopic chassis Track shoe width mm 800 Tail turning radius mm 4036 complete machine Quality of work t 80 Maximum traction kN 423 Maximum travel speed km/h 2.26 Overall machine height m 23.3(21.3) Configurable Drill Pipe Models Model Drilling depth m Remarks Friction bar Φ440-5 × 15.5m 70 Locking bar Φ440-4 × 15.5m 56 Standard Friction bar Φ440-5 × 13.5m 60 Locking bar Φ440-4 × 13.5m 48

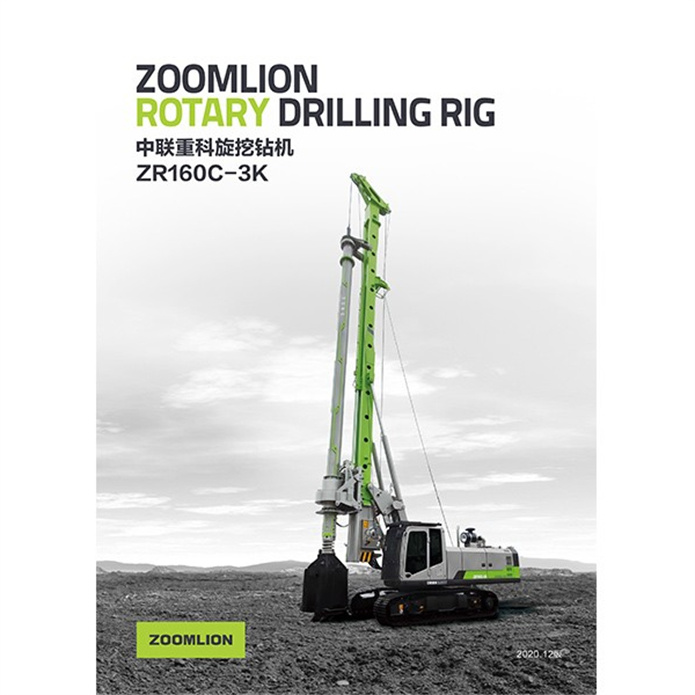

Zoomlian Heavy Industry Rotary Drilling Rig

ZR160C-3K

Performance Characteristics of Zoomlian Heavy ZR160C-3K Rotary Drilling Rig 1. The whole vehicle can be transported with rods, and the work and transition can be quickly changed. A single assembly and disassembly can save 4 hours. 2. A flatbed truck can realize the whole machine transportation, and the single transfer cost is 30% lower than that of the same model in the industry. 3. The power head has large torque, high reserve coefficient and stronger application capacity. 4. The high speed of the power head * * can reach 45rpm, and the soil rejection efficiency is 10% higher than that of competing products. 5. The use of large-flow main pump, multi-gear power head, two-speed pressurized oil cylinder, higher efficiency. 6. Large mast section, low center of gravity of the whole machine, large diameter slewing bearing and reinforced chassis make the machine structure more stable and strong bearing. 7. Adopt a new generation of cab, new man-machine interface, good sight, more comfortable operation. 8. A new generation of electronic control platform, 360-degree full-view monitoring, mobile phone APP push device information, safe and convenient. 9. The selection industry pioneered wireless control to realize remote control walking, car exhibition and car collection functions. Main parameters Unit Numerical Remarks Borehole parameters **Large drilling diameter mm 1500 **Large drilling depth m 56/44 Friction rod/engine lock rod 62 Optional Power head **Large output torque kN.m 180 Speed range rpm 5 to 33 Standard 5 to 45 Optional Pressurized system Pressurization mode Oil cylinder pressurization Add pressure kN 160 Pulling force kN 160 **Large Pressurization Stroke mm 4500 Master Wink Structure type of drum double layer **Large single rope pull kN 170 **Great speed m/min 73 Wire rope diameter mm 26 Vice winch **Large single rope pull kN 60 **Great speed m/min 80 Wire rope diameter mm 18 Mast Inclination Front/Rear ° 5/90 Left/Right ° ± 3.5 Engine Engine Model Cummins QSC8.3 Engine rated power kW/rpm 181/2000 Engine emission standards Country III Engine Displacement L 8.3 Chassis Outer width of crawler (**small ~** large) mm 3000~4000 Track shoe width mm 700 Tail turning radius mm 3950 complete machine Quality of work t 54 **Large traction kN 330 **Large walking speed km/h 2.1 Overall machine height m 18.8/(20.3) Whether to transport with rod Yes Transport height with rod mm 3588
